| Sis W |
|
127' Burger Burger Tri-Deck Motoryacht
- Year: 2003
- Current Price: US$ 17,900,000
- Located in Fort Lauderdale, FL
- Hull Material: Aluminum
- Engine/Fuel Type: Twin Diesel
|
Additional Specs, Equipment and Information:
|
Builder/Designer
|
| Builder: Burger |
Designer: Burger
Design Team |
|
|
Dimensions
|
| LOA: 127' |
Beam: 27' |
Draft: 6' 6 |
|
|
Engines
|
| Engine(s):
Caterpillar |
Engine(s) HP:
1300 |
Engine Model:
3508B |
| Cruising Speed:
13 knots |
Max Speed: 15
knots |
|
|
Tankage
|
| Fuel: 14,130
gallons |
Water: 2,550
gallons |
Holding: 545
gallons |
|
Exterior Walkthrough & Features

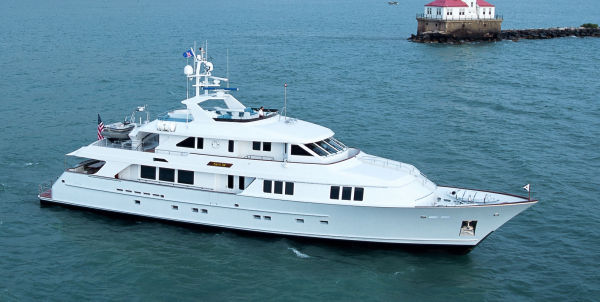

Her classic, American lines can be admired from any angle.
Her flybridge boasts ample seating, generous sun bathing
areas, a full-size Jacuzzi, and a full wet bar.
Her aft deck provides a great place for casual dining for
10, and her outdoor amenities make for a popular outdoor
lounge area.
|
Interior Walkthrough & Features
Her spacious interior allows for massive entertaining spaces
and full wheelchair accessibility throughout, thanks to wide
hallways, doorways, and a 3-deck elevator system. Her
interior maintains a traditional ambience with beautiful
African cherry woodwork, flawless joinery, and Madrone burl
wood accent panels. Custom carpet is featured in most
interior living areas.
Her 5 luxurious staterooms sleep 10 guests. Her on-deck
Master Stateroom will impress the most discerning yachtsman.
Very kind crew and captain�s accommodations make her
entire crew happy and ready to serve.

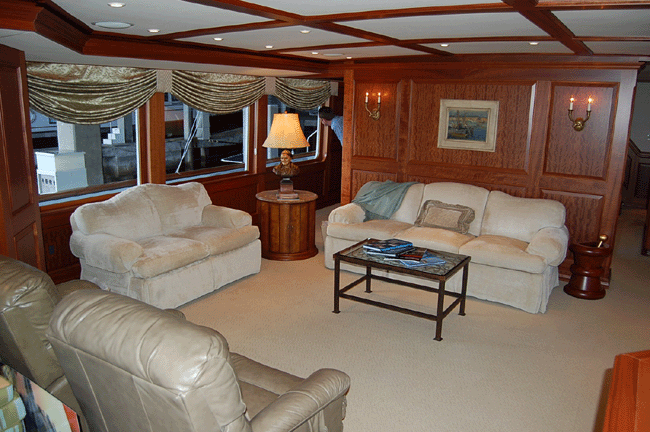

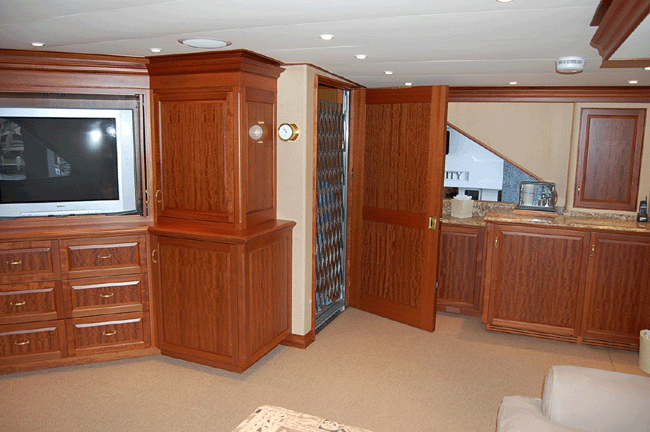

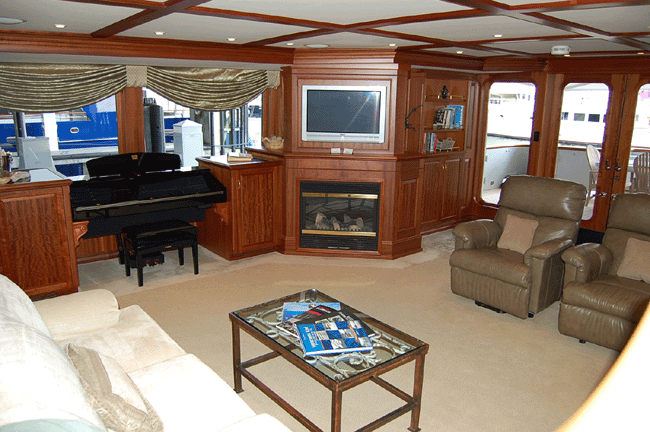

Her Main Salon features huge open areas for lounging,
entertaining, and relaxing. Her fireplace, and Clavinova
piano make the Main Salon unique to any vessel close to her
size.
Her commercial galley is equipped with the finest
professional cooking and cleaning systems. Her modern
equipment makes preparing, cooking, serving, and cleaning a
breeze. Large counter spaces, and storage compartments will
make any chef happy.

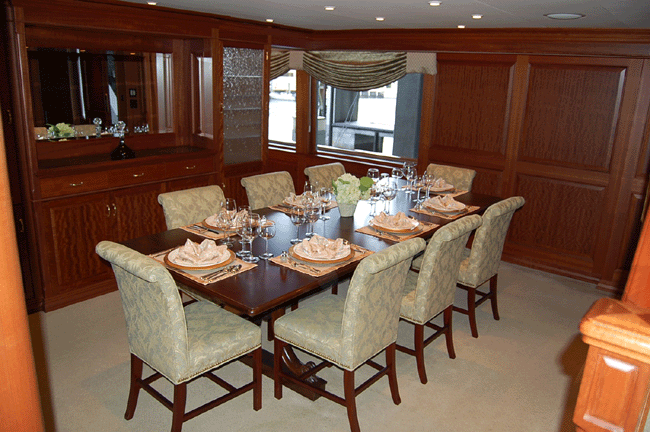

Her formal Dining Salon, separated by beautiful cabinets,
seats up to 10 guests.

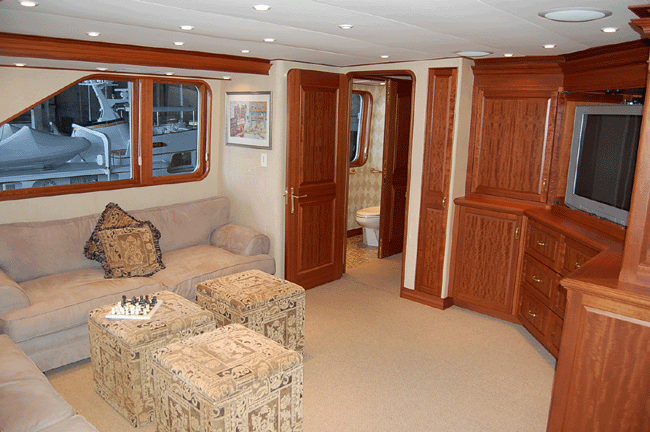

Her charming Sky Lounge boasts a spectacular view of the
world, where the brains of the entertainment center is
located, providing access to the movie and music library
throughout all interior and exterior areas.
The Sis W is equipped for wheelchair use, although most
guests would hardly know. A discreetly positioned and nicely
appointed elevator connects all three decks. The custom
gangway allows for easy boarding for a wheelchair, and the
extra wide hallways, and entrances provide easy access for
all guests.
|
Accommodations
There are a total of 20 berths including captain and crew.

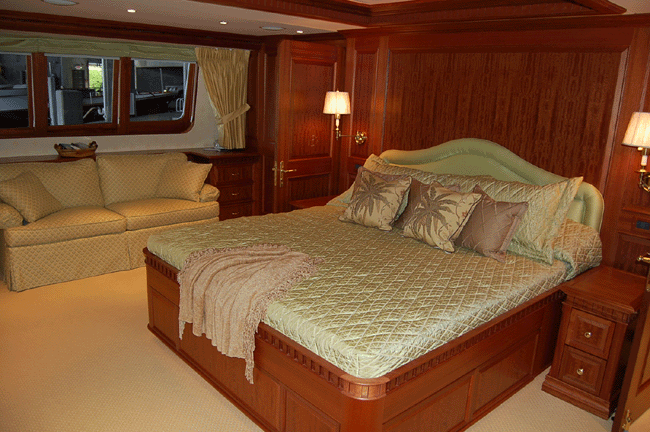

The Main Deck Master Stateroom features a king-sized berth,

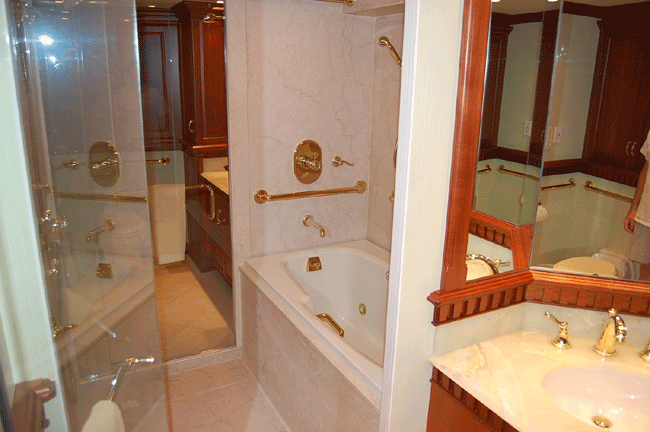

and a seating area. The bathroom, elegantly appointed with
Makore wood and onyx throughout, has a walk in shower and
Jacuzzi bathtub, and his and her separate vanity areas.

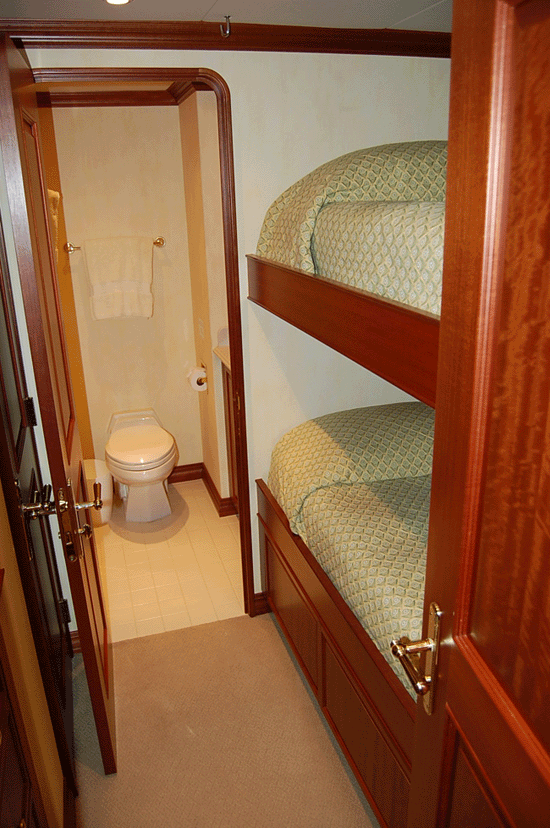

The Master Stateroom has an adjacent cabin suited for
children, a nanny or personal staff. It has two bunk beds
and a separate bathroom with a shower.

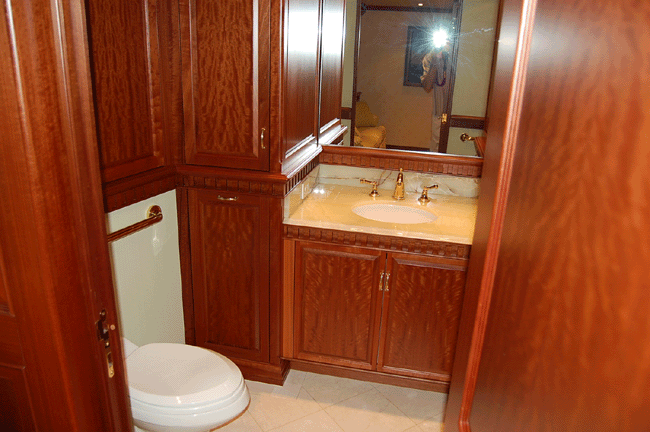

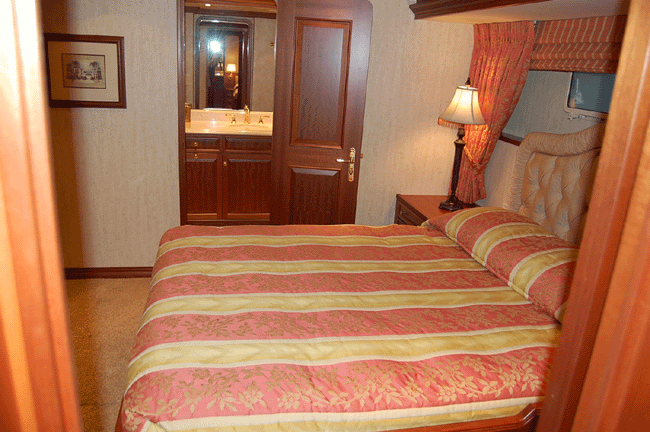

Two Queen Staterooms with generous closets, feature ensuite
heads with large walk-in showers.
Two Twin Staterooms with generous closets, feature marble,
ensuite heads with large walk-in showers.

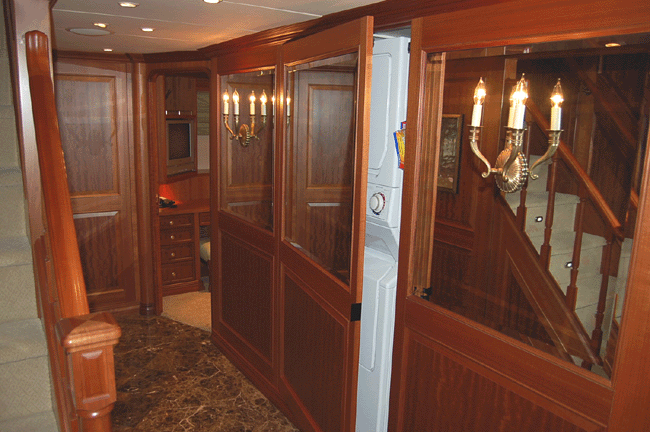

Adjacent to the four guest staterooms below deck is a linen
storage and utility closet, a laundry center and a 200
bottle climate controlled wine cellar.

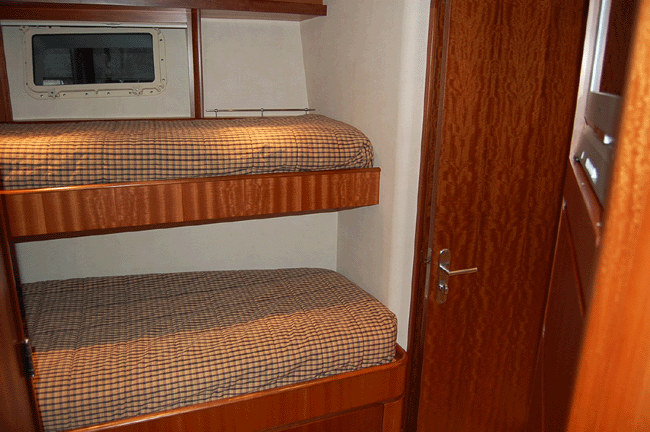

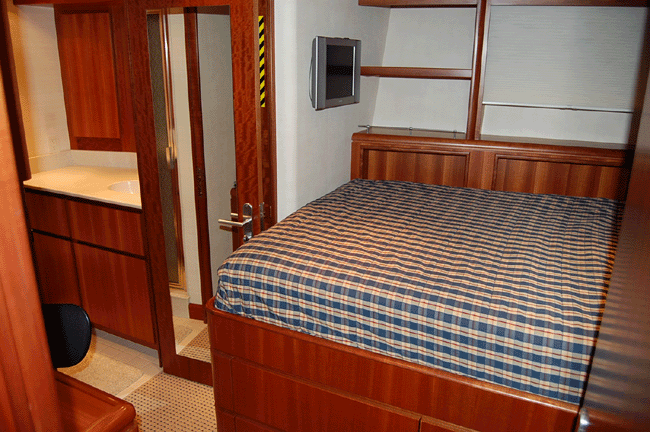

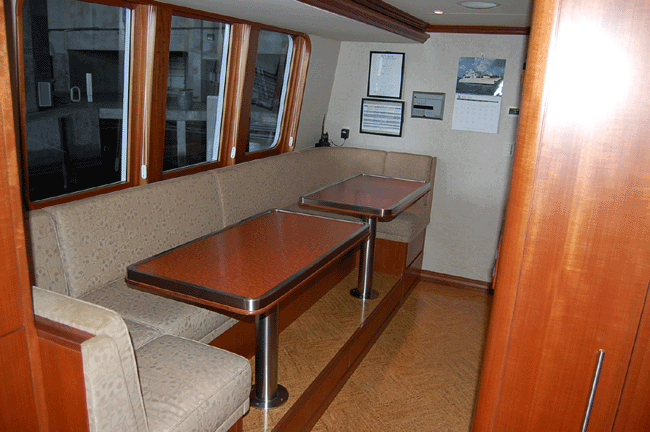

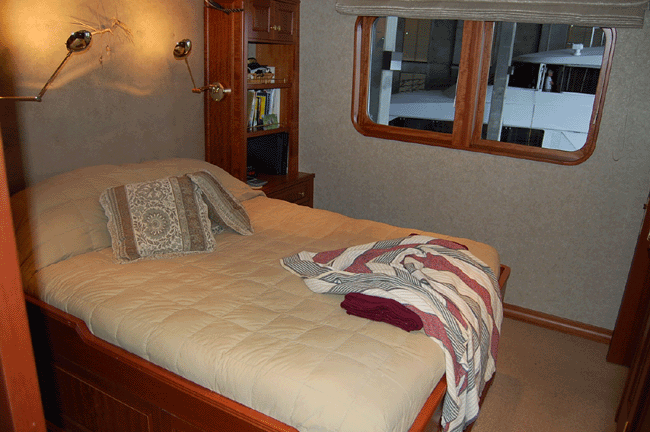

Crew accommodations include a generous Captain cabin behind
the bridge, as well as four cabins below. Each with private
head and shower, Satellite TV, CD and DVD player and
wireless internet.
|

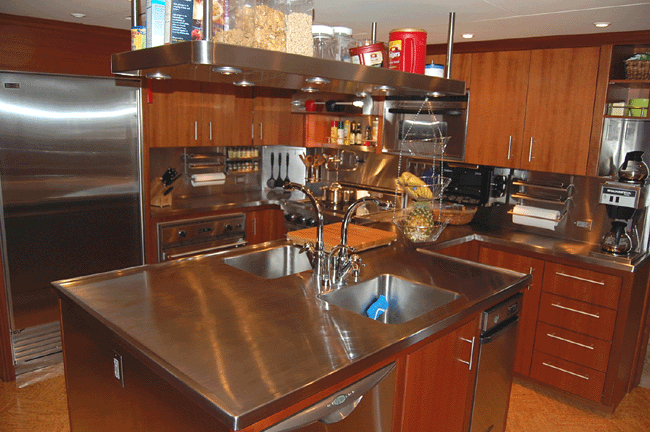

Galley
The Galley is laid out by a highly experienced yacht chef,
and is ideal for preparing elaborate dinners with generous
storage space and great surfaces for food preparation. There
are two separate working areas, one for the chef and one for
the serving staff. All appliances are modern and state of
the art. Her massive refrigerator and freezer space allows
for long-range cruising.
- Fisher Paykal 2 drawer dishwasher
- Viking commercial dishwasher
- GE Refrigerator Freezer
- Sub-Zero Icemaker
- Two (2) Sub-Zero freezer drawers
- Sub-Zero Refrigerator
- Two (2) Viking convection ovens
- Viking 4 burner electric glass top range
- Viking exhaust hood
- GE microwave oven
|
- GE trash compactor
- Bloomfield coffee maker
- Cuisinart Toaster oven
- Stainless steel counter tops
- Stainless steel overhead dry storage and spice
rack
|
|

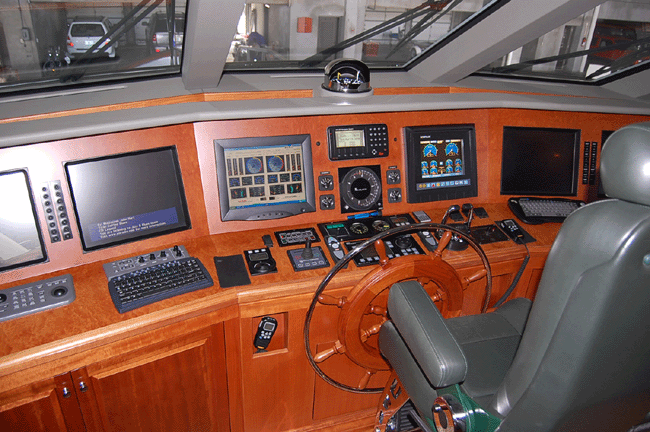

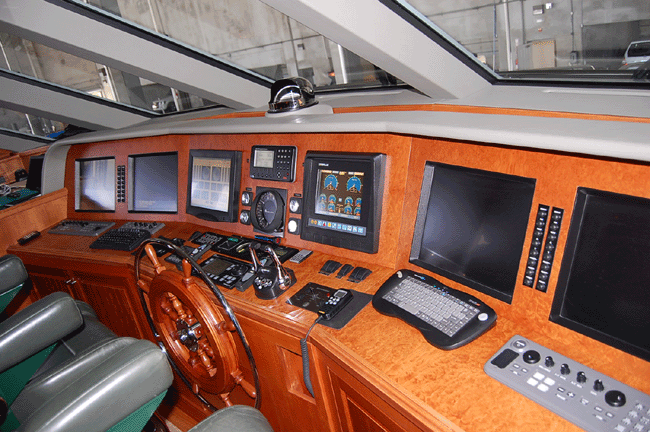

Pilothouse (including Electronics)

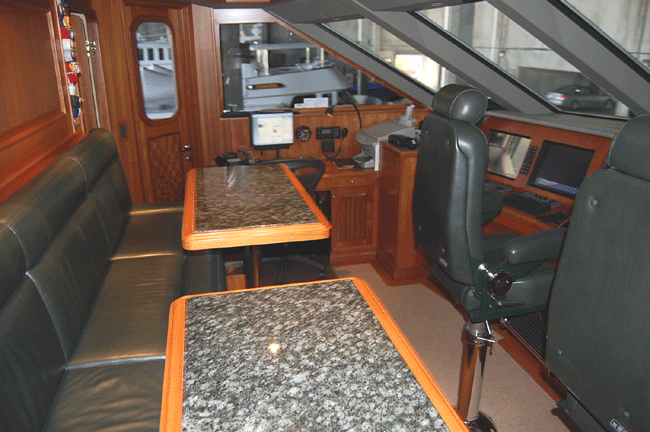

Her Pilothouse showcases an impressive command station with
a full 6-screen glass bridge with interchangeable displays.
In addition to two pedestal mounted helm chairs, guests can
watch from a luxurious leather upholstered seating area, and
two granite topped tables.
Her captain will appreciate great visibility, as well as a
large desk and ample work area.

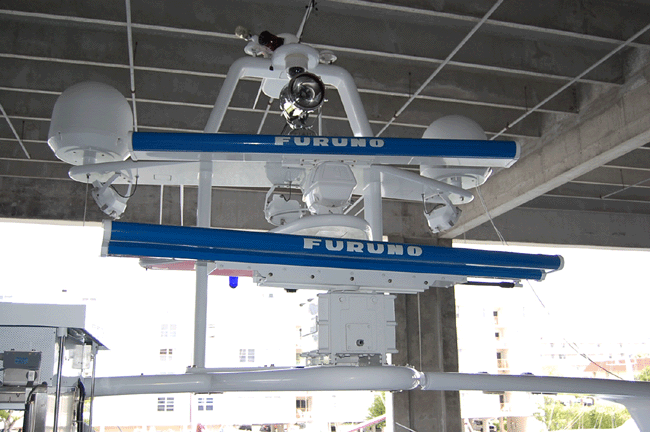

- Furuno 96 mile X-band color radar with ARPA
- Furuno 96 mile S-band color radar with ARPA
- Furuno AIS vessel ID system
- Furuno color depth sounder
- Two (2) Leica MX420 GPS units
- Two (2) Icom MC M602 VHF radios
- Brooks & Gatehouse Hydra 2000 wind, depth,
speed monitor
- Two (2) Brooks & Gatehouse remote monitors
for Hydra system
- C-Plath gyrocompass
- C-Plath autopilot
- C-Plath rudder angle indicators
- Bow Thruster control (proportional/locking)
- Searchlight remote control
- Air horn & whistle control
- Four glass screen monitors, all
interchangeable (SiMON, chart plotter, CCTV,
X-band radar)
- Nobletec Admiral plotter software on separate
dedicated PC integrated with X-band radar and
AIS
- Dell tower PC Pentium V
- Caterpillar Engine CAT-Vision monitor
|
- Closed circuit television system, engine room,
mast head, aft deck, P&S side decks
- SiMON Vessel monitoring and alarm system with
dedicated PC
- Burger BASICS vessel alarm system
- Verizon Internet cellular connect
- Icom SSB IC M802 radio
- HP Office Jet printer/fax/scanner
- Panasonic Hybrid Phone System
- Global Star SatCom System
- Stratos Mini-M SatCom/fax system
- Xenon Carlisle & Finch 25,000,000 candle
power search light
- Glendinning electronic engine controls with
manual back-up
- Kenwood CD, tape, am/fm player with satellite
feed antenna
- Ship�s signal flag collection with holders
- Locking firearms locker
|
|
Wing Station Electronics
Her well-equipped port and starboard wing stations provide
for safe and easy manuevering and docking in tight spaces.
- Glendinning engine and transmission controls
- Bow thruster control (proportional/locking)
- Jog steering control
- Furuno remote: wind, speed, depth
- Icom VHF radio
- Air horn control
- Francis searchlights 8,000,000 candle power
|
|

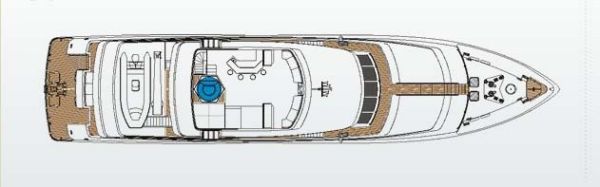

Flybridge (including electronics)

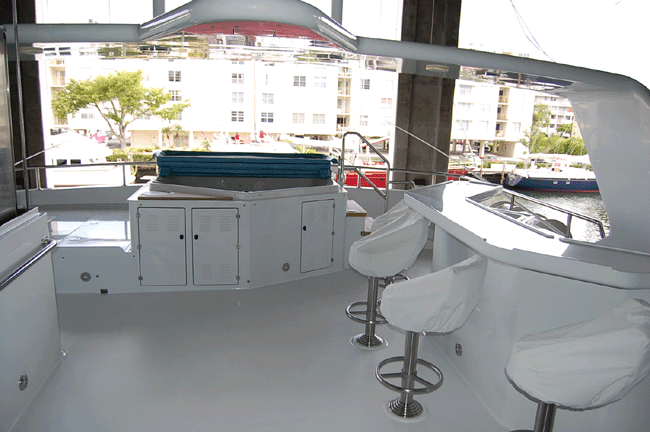

Her flybridge boasts ample seating, generous sun bathing
areas, a full-size Jacuzzi, and a full wet bar. Guests will
also enjoy the flybridge stereo with access to the on-board
music library, and Satellite radio.

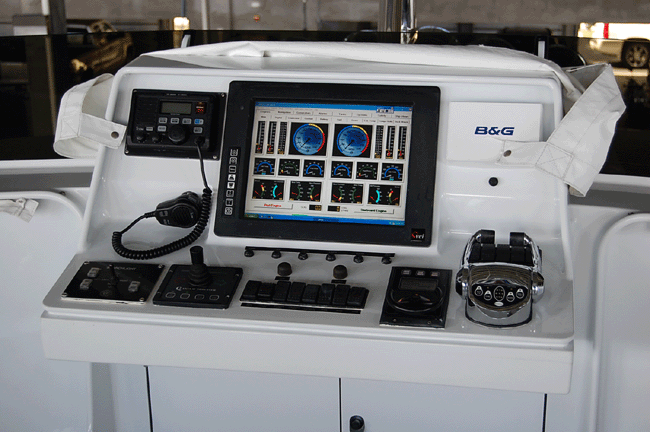

- All weather multi-function glass screen
monitor: Plotter; radar; CCTV, SiMON system
- Brooks & Gatehouse remote monitor: wind;
speed; depth
- IC M502 VHF radio
- Glendinning engine and transmission controls
- Searchlight remote control
- Bow thruster control (proportional/locking)
- Autopilot and jog steering control
- Air horn & whistle control
|
|
Swim Platform
From the aft deck, a convenient stairway leads to the full
beam swim platform, with easy access to water toys and
swimming, and a day shower to rinse off after swimming or
diving. Adjacent to the swim platform is a lazarette
equipped with a dive compressor.
The swim platform has an excellent set up for deep sea
fishing, including a fighting chair, outriggers, electric
reels for fishing at great depth, an integrated fish ice
chest with icemaker, and extensive fishing equipment.
|

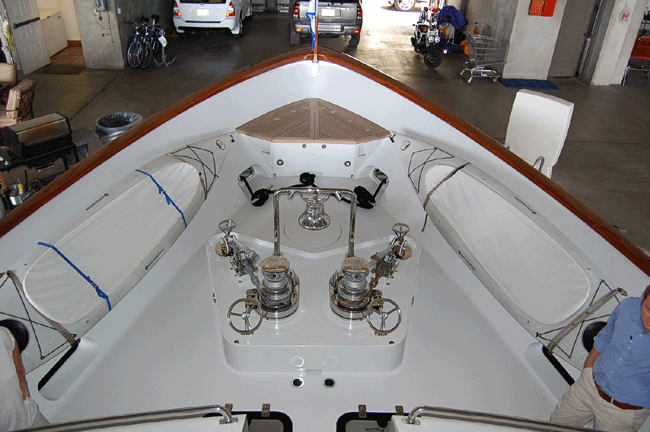

Deck & Hull Equipment
- Muir VCR 8000 � Two (2) speed fore deck
anchor windlasses
- Muir VC 4000 � Two (2) aft deck capstans
- P & S �in. G4 chain 400 feet each
- P & S 400lb. Talon stainless steel anchors
- Fortress FX-125 anchor with chain and line
rode
- Mar-Quip stainless steel boarding ladder
- Stainless steel swim ladder
- Teak and aluminum swim platform
- Swim platform integral fish box
- Eskimo shaved ice system for fish box
- Pedestal mounted Pompano fishing chair and rod
holders
- Electric reel rod holder and plug

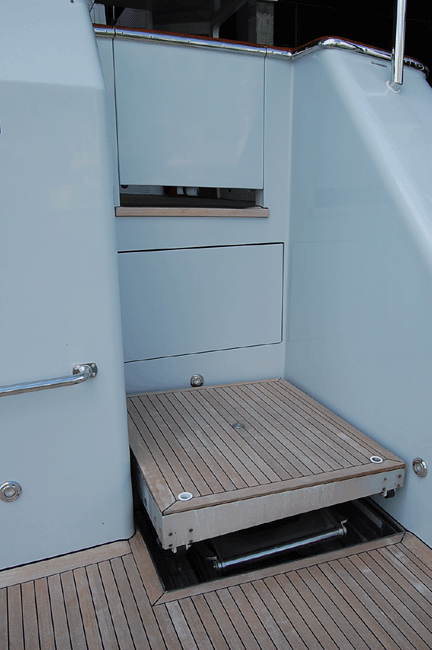

- Hydraulic scissor lift integrated into Euro
stern for wheelchair movement between aft deck
and swim platform
- Fore and aft throw rings (4)
- 20 life jackets
- Dual anchor pockets with thru deck hawse pipes
and fresh water wash
- Swim platform shower
- Four (4) underwater lights that illuminate the
water around the swim platform
|
- Fore deck teak seat at stem
- Lines
- Bell stand on fore deck
- Fore deck cuddy storage
- Forward and aft Gleason reel systems for shore
cords
- Aft deck teak furniture
- Ships air whistle
- Nautical Structures pneumatic/hydraulic
23ft.-6in. telescoping passarelle, custom width
of 35 inches. (27.5 inches of walking area)
- Aft deck table and seating

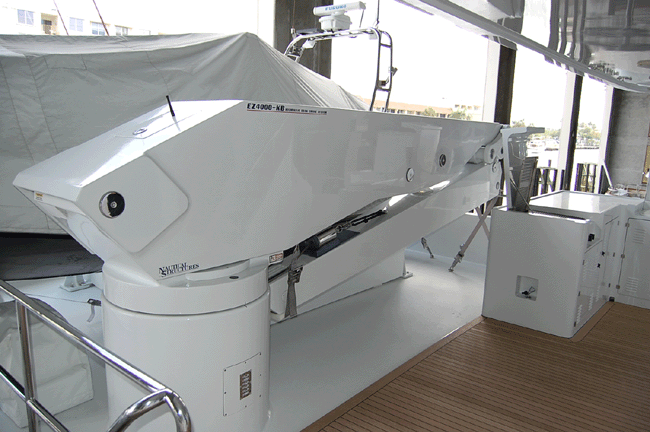

- Nautical Structures EZ 4000 crane
- (3) Nautical Structures gantry cranes, aft
deck (2) and amidship (starboard)
- Kahlenberg 5 trumpet air horns and whistle
- Boat deck wet locker with refrigerator

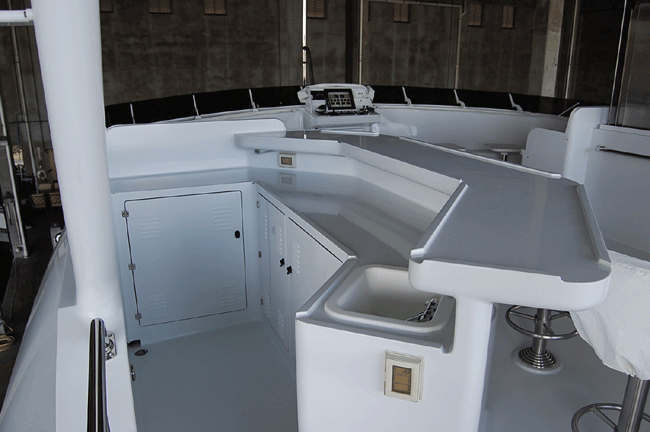

- Flybridge wet bar with refrigerator and U-Line
icemaker
- Flybridge Jacuzzi
- 21ft. 6in. Northwind aluminum RIB tender with:
130 Honda 4 stroke outboard motor, radar arch,
radar, VHF, ROD
- Two (2) 10 man Switlik life rafts with
hydrostatic release systems
- Spare main engine props
- Lazarette chest type freezer
|
|
Tankage & Capacities
- Fuel: 14,130 gallons (53.487 liters)
- Water: 2,550 gallons (9,652 liters)

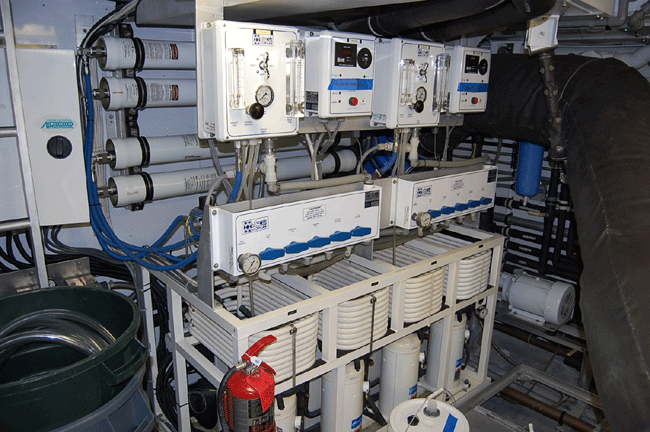

- Watermaker: 4,000 gallons per day (15,141
liters)
- Lube Oil: 275 gallons
|
- Waste Oil: 275 gallons
- Waste Water: 545 gallons
- Sewage: 556 gallons
- Sludge: 60 gallons
|
|
Fuel Consumption
- 10.2 knots @ 1100 RPM uses 28.8 gallons per
hour and provides a range of 5001 nautical miles
- 13.0 knots @ 1400 RPM uses 50.5 gallons per
hour and provides a range of 3460 nautical miles
|
- 15.0 knots @ 1870 RPM uses 123.5 gallons per
hour and provides a range of 1716 nautical miles
|
|
Mechanical Equipment

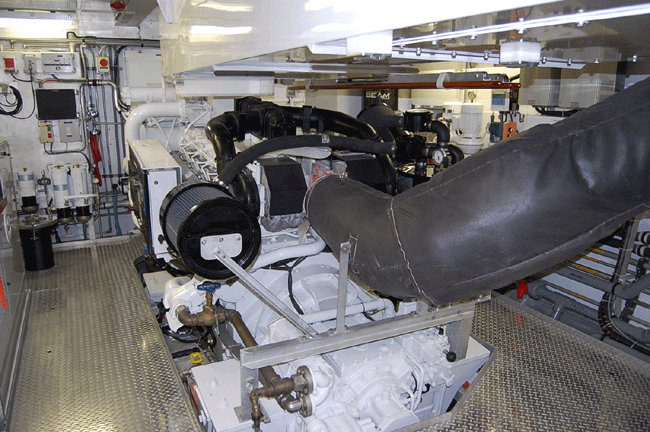

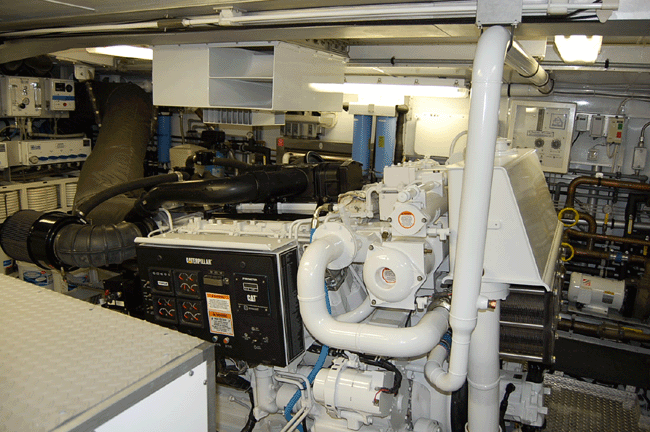

- Main engines: (2) Caterpillar 3508B (1300 hp
ea.)
- Walker Air Seps
- Gearboxes: ZF Marine, ZF365

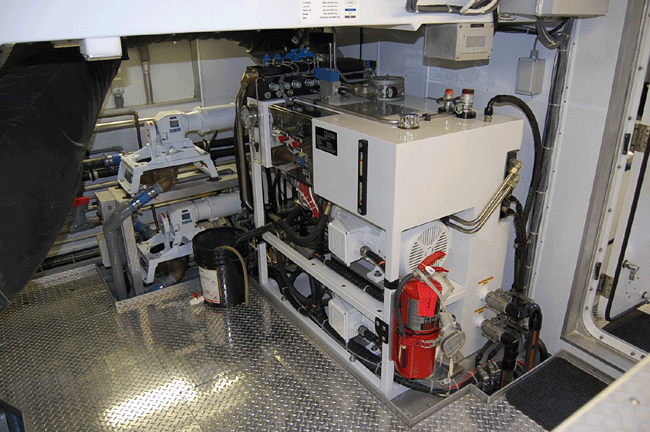

- Quantum central hydraulic system with 2
auxiliary 20hp electronic monitors
- Quantum 150hp bow thruster
- Nautical Structures 4000lb articulating
knuckle boom tender crane with full hydraulic
function
- Nautical Structures telescoping passarelle
with full hydraulic function
- Three (3) Nautical Structures gantry cranes,
aft deck (2) and amidship (starboard)

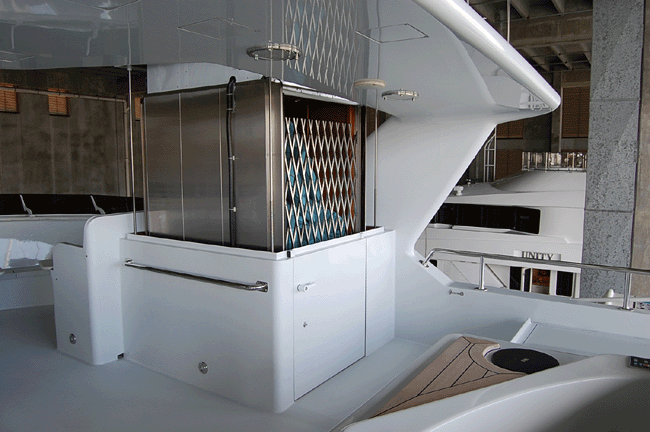

- Lift-a-vator hydraulic integral elevator
system
- Bauer dive compressor
- Three (3) laundry stations: Lazarette, guest
quarters, crew quarters
- Hamann USCG Type-II Waste Treatment Plant
|
- Chem-Free ozone generator
- Delta-T air ventilation system
- Emergency fire/bilge pump system
- Edson gray and black water commercial grade
diaphragm pumps
- Kaydon fuel filtration scrubbing system
- Water softener system
- Two (2) Air compressors and storage tank
- Work bench with stainless steel sink and bench
vise
- Two (2) Watermakers Inc. RO systems, each 2000
gpd
- Marine Air chilled water air conditioning, 20
tons, 4 chiller units
- Beam central vacuum system
|
|
Electrical System

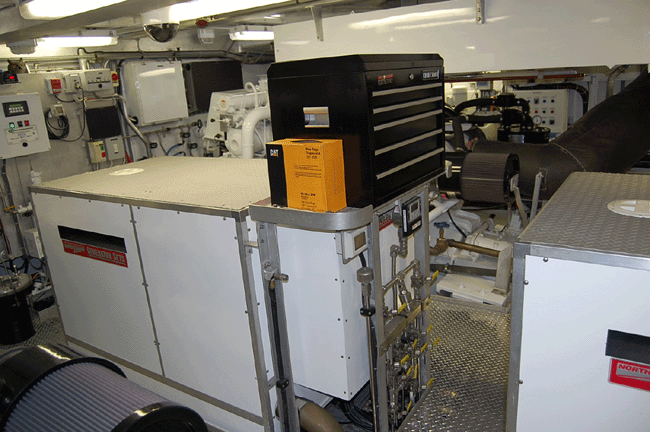

- Generators: Two (2) Northern Lights (65KW ea.)
- Output: 208v, 3 phase, 60 hertz
- Shore Power: 240v, 3 phase, 60 hertz
- Voltage: 12v/24v/110v/220v
- SiMON � vessel information monitoring and
alarm system
- Burger A.M.P.S. � ship�s information
monitoring and alarm system
|
- Atlas ShorPower conditioner
- Atlas Tec-Power Switchboard and Main
Distribution Panel
- Sentry 12v & 24v automatic battery
chargers
- Fore and Aft Glendinning shore cable reels
- Auxiliary fore and aft shore cable connections
- WiFi network system
|
|
Tender & Toys
Sis W is set up to tow a large tender, and can supply a
rafted vessel with 30 or 50 amp electrical power, fuel and
water transfers. Tenders: 21' 6" aluminum rigid bottom
inflatable Northwind with a 130hp Honda outboard, equipped
with radar, plotter, and video depth sounder. 10' Avon
fiberglass rigid bottom inflatable with a 15hp Yamaha
outboard. Two kayaks.
|
Disclaimer
The Company offers the details of this vessel in good faith
but cannot guarantee or warrant the accuracy of this
information nor warrant the condition of the vessel. A buyer
should instruct his agents, or his surveyors, to investigate
such details as the buyer desires validated. This vessel is
offered subject to prior sale, price change, or withdrawal
without notice.
|
Bridge
Bar
Elevator
Bridge
Helm
Crane
Crew
Dinning
Crew Twin
Dinning
Staterooms corridor
Galley
Guests Queen (2)
Guests Head
Queen
Upper/Lower next to Master
Lower helm
Port
engine
STBR engine
Salon aft
view
Salon forward view
|
%20Banner.jpg)
